Digital-Ready
Dental Intraoral X-Ray Unit
(FDA Listed)
PantOs
IntraOs
Simply select the desired tooth and
patient size, and you're on your way.
A powerful microprocessor
automatically chooses the exposure
time, according to the type and
position of the tooth; options of
three patient sizes;  film or digital
sensor; with automatic
compensation for the main voltage
variation.  Manual override is
optional if required.  Technical
factors are displayed on a bright
LCD Screen, with a submenu that
provides additional options.
***Standard Wall Mount comes
with 16" Wall Plate

***Single Stud Mount Available
upon request.
70 KVp Tubehead
LCD Display and Control
Panel
Technical Features
  • Rated Line Voltage:  120V. +/- 10% (109-132VAC), 50/60Hz
  • Power Consumption:  1,050KW max @ 132VAC
  • Rated Tube Potential:  70kVp +/- 7% (Single phase, self rectifying).
  • Rated Tube Current:  8mA +/- 15% @ 120VAC
  • Exposure Time Range:  0.03 to 3.00sec., in steps of 0.01sec.  Plus,
    27 pre-set exposure times, with automatic main voltage
    compensation.  Four different Pre-heating pre-selected by the user
    are available for loading the x-ray tube (Pre-heating time is not shown
    on the display).
  • Minimum Focal Spot to Skin Distance:  200mm (8")
  • Radiation Leakage @ 1 m.  Less than 50mR/h (Technical Factors:
    70kVp, 8 mA, 1s.).
  • Focal Spot: 0.8 x 0.8mm
  • Total Filtration:  2mm. Al eq.
  • Net Weight:  63lbs (Wall mount),  90lbs (Mobile)
  • Shipping Weight:  72lbs (Wall mount), 102lbs (Mobile)
  • Shipping Dimensions:  (Wall Mount) 1 Box, 131 x 52 x 26cm.  (Mobile)
    2 Boxes; 111 x 34 x 25cm,  87 x 38 x 33cm.
with a small focal spot, low energy x-ray
filter, and beam limiting device, assures
outstanding sharpness, and maximum
details in intra-oral radiography.
Positioning is made easier with an angle
indicator on one side of the unit.  Lead
shields and critical components are over
sized to provide additional years of safe
and trouble-free operations.
Long Reach Double Positioning Arm
The long reach scissors arm moves effortlessly through a wide area, yet folds
compactly when not in use.  The scissors arm allows ease of positioning and drift free
stability.
Standard Extension Arm (Wall Mounted version)
Standard Extension Arm provides a total inside reach of 180.6cm (71 1/8")
Corix 70 Plus-USV (optional Wall Mount, or Mobile Version)
Conditions in your practice will dictate where to perform x-ray examinations.  With the
Corix 70 Plus-USV you can choose the option that best fits your needs:

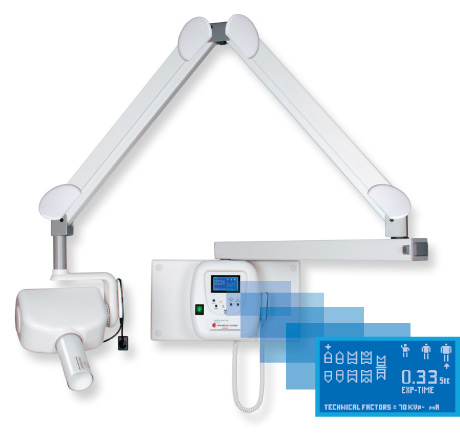

Wall Mount--Wall mounted directly in the x-ray room or directly in the treatment room.
Wall mount can be stationed for side-by-side operatory stations.
Standard Wall Mount provided with a 16" Wall Plate.
Single Stud Mount available at an additional cost.

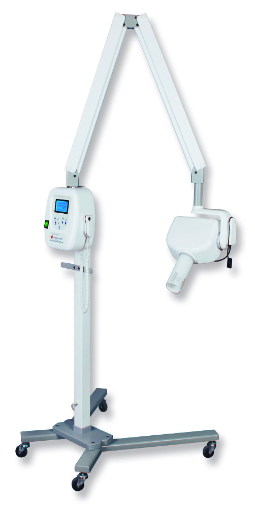

Mobile Stand--mobile unit that allows reaching separate operatory stations on a sturdy
and stable rolling stand.
Corix 70 Plus... NEW DESIGN!!!
Chicago X-Ray Systems, Inc.
800-870-2792
LITERATURE
SPECS
Corix Frontal View
Corix Side View
NOW AVAILABLE WITH
NEW-STYLE TUBEHEAD!!!
Chicago X-Ray Systems, Inc.
chicagoxray@yahoo.com
(800)870-2792
Prospect Heights, IL 60070


Copyright © 2008 Chicago X-Ray.  All Rights Reserved

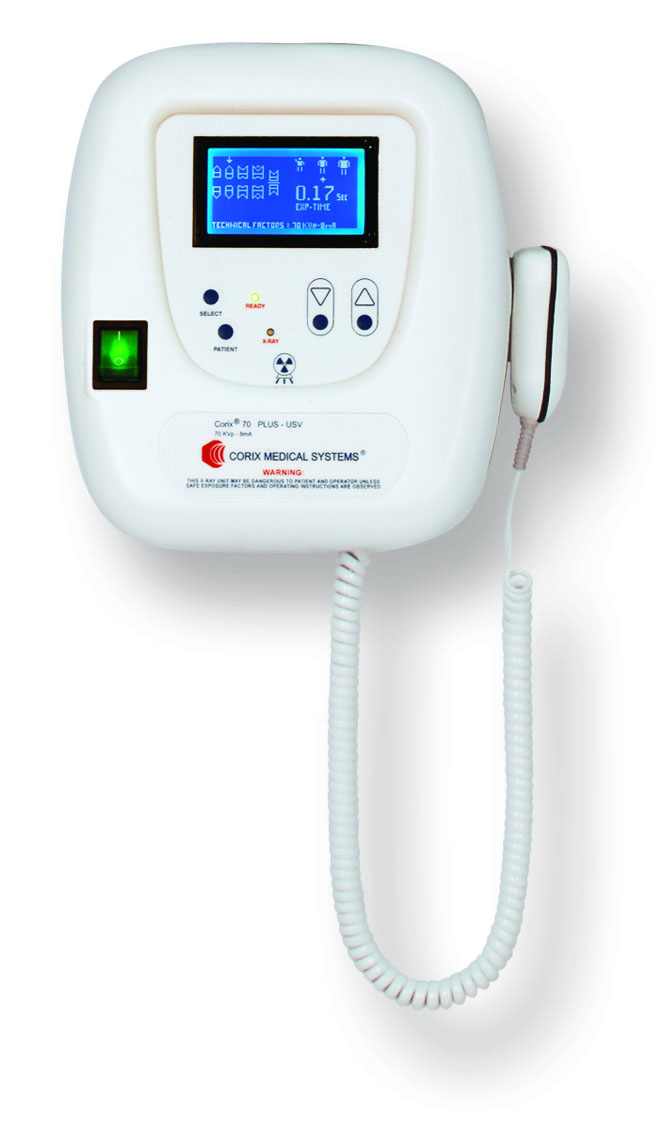

NOW AVAILABLE WITH
NEW-STYLE CONTROL
PANEL!!!
Exposure Timer, with a three digit LCD Display, fully
compatible with the fastest film or digital imaging
system with an array of sub-menu options only
provided by Corix Medical Systems:
  • Four options of pre-heating time selections for the x-
    ray tube.
manual override, if required.
  • Exposures counter.
  • Precision integrated digital voltmeter for monitoring
    the mains voltage variations.
  • Three internal exposure time calibration factors, to
    compensate for the sensitivity of the film or the CCD
    sensor.
  • Optional, remote x-ray button.
  • Optional, safety double x-ray buttons.
