Cattani

Oil-less Compressors

The CATTANI oil-less compressor, complete with drying system, and a
set of filters, is capable of supplying dry compressed air of extremely high
quality and purity.

Single Head/2-Cylinder
CP070276

Single-phase motor 60 Hz - 1.5 kW - 9.2 A.

Air tank=45 litres

Produced air with delivery pressure at 5 real
bar: 160 N l/min.

Sound pressure level 71 dB (A).

W=23in. D= 24in. H=30in.

Net Weight= 127lbs. Gross Weight= 172lbs.

Single Head/3-Cylinder
CP070376

Single-phase motor 60 Hz - 1.75 kW - 12.2 A

Air tank=75 litres

Produced air with delivery pressure at 5 real
bar: 238 N l/min.

Sound pressure level 73.6 dB (A).

W=23in. D= 24in. H=37in.

Net Weight= 143lbs. Gross Weight= 188lbs.

Twin Head/2-Cylinder
CP070476

2 single-phase motors 60 Hz 1.5 kW - 9.2 A.

Air tank=100 litres

Produced air with delivery pressure at 5 real
bar: 320 N l/min.

Sound pressure level 73 dB (A).

W=46in. D= 22in. H=30in.

Net Weight= 246lbs. Gross Weight= 307lbs.

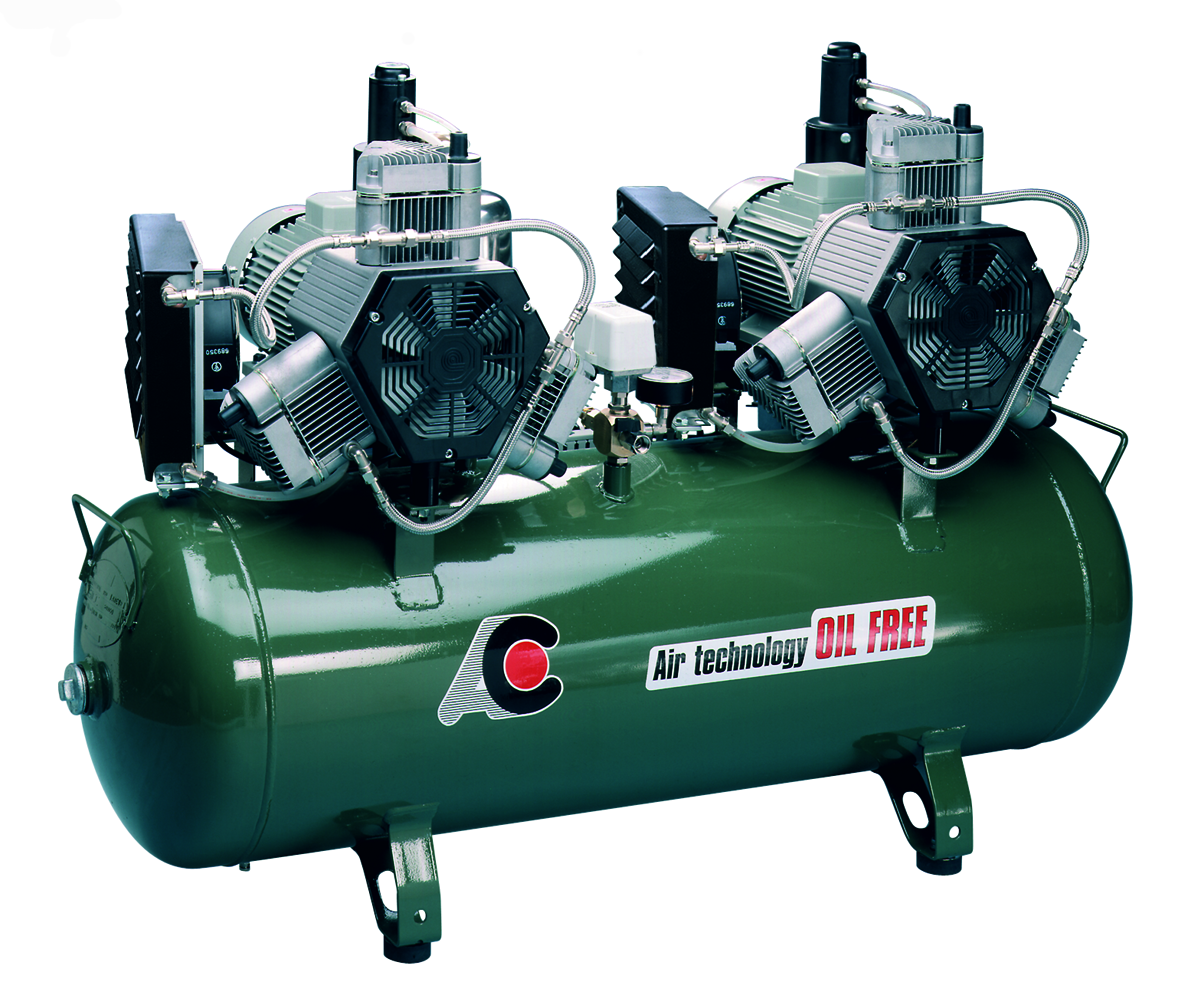

Twin Head/3-Cylinder
CP070576

2 three-phase motors 60 Hz 1.75 kW - 8/4.7 A.

Air tank=150 litres

Produced air with delivery pressure at 5 real
bar: 476 N l/min.

Sound pressure level 74 dB (A).

W=52in. D= 24in. H=36in.

Net Weight= 302lbs. Gross Weight= 441lbs.

***Single Head Compressors require one dedicated 230V line along with one 20amp
breaker.

***Dual Head Compressors require a dedicated 230V line along with two 20amp
breakers.

***Compressor tanks are now painted in black.
