| Bio-Ray HR Intra-Oral Sensor |
 |
 |
 |
| Chicago X-Ray Systems, Inc. chicagoxray@yahoo.com (800)870-2792 Prospect Heights, IL 60070 Copyright © 2008 Chicago X-Ray. All Rights Reserved |
Chicago X-Ray
Systems, Inc.,
presents the best
of CMOS
technology,
offering the
Bio-Ray HR: an
innovative sensor
to obtain a better
diagnosis with high
quality images,
saving both
valuable time and
space.
Systems, Inc.,
presents the best
of CMOS
technology,
offering the
Bio-Ray HR: an
innovative sensor
to obtain a better
diagnosis with high
quality images,
saving both
valuable time and
space.
Water-resistant
Direct USB connection

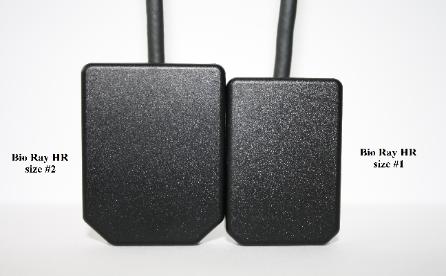

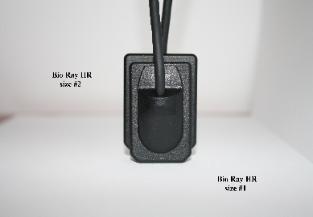

The Bio-Ray HR is available in two sizes:
Size 1 with a sensitive (active) area of 32mm
x 22mm (ideal for children and tight areas)
Size 2 with a sensitive (active) area of 36mm
x 27mm: a larger surface area for standard
examinations
Size 1 with a sensitive (active) area of 32mm
x 22mm (ideal for children and tight areas)
Size 2 with a sensitive (active) area of 36mm
x 27mm: a larger surface area for standard
examinations
TECHNICAL DATA
Dimensions: 39 x 25 x 5.3 mm (size 1), 42 x 30 x 5.6 mm (size 2)
Active Area: 32 x 22 mm (size 1), 36 x 27 mm (size 2)
Pixel Size: 20 x 20 µm
Number of pixels: 1500 x 1000 (size 1), 1650 x 1250 (size 2)
Distance between pixels: 20 µm
Spatial resolution: 20 lp/mm
Dynamic range: 58dB
Scintillator type: Csl
Connection to PC: USB 2 (A type)
Supply Voltage: 5V DC
Maximum absorbed current: 275 mA
Frame rate: 0,7 fps
Dark current typical 23°C: 350 LSB/s
Saturation dose (70kV): 340µGy
Sensitivity: 15 LSM/µGy
X-Ray response
non uniformity (XRNU): + 30%
Degree of protection: Equivalent to IP67
Temperature: 0° to 35°C
Dimensions: 39 x 25 x 5.3 mm (size 1), 42 x 30 x 5.6 mm (size 2)
Active Area: 32 x 22 mm (size 1), 36 x 27 mm (size 2)
Pixel Size: 20 x 20 µm
Number of pixels: 1500 x 1000 (size 1), 1650 x 1250 (size 2)
Distance between pixels: 20 µm
Spatial resolution: 20 lp/mm
Dynamic range: 58dB
Scintillator type: Csl
Connection to PC: USB 2 (A type)
Supply Voltage: 5V DC
Maximum absorbed current: 275 mA
Frame rate: 0,7 fps
Dark current typical 23°C: 350 LSB/s
Saturation dose (70kV): 340µGy
Sensitivity: 15 LSM/µGy
X-Ray response
non uniformity (XRNU): + 30%
Degree of protection: Equivalent to IP67
Temperature: 0° to 35°C
